F4· Rekordéry

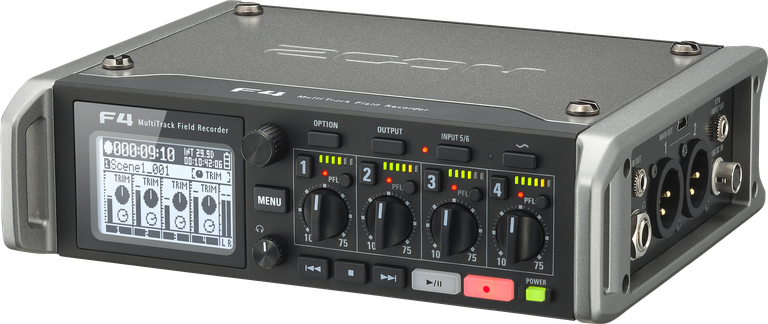

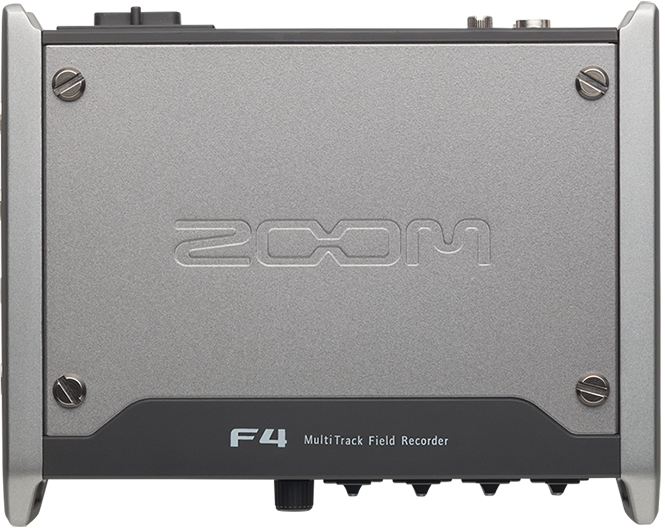

A compact 6-input/8-track field recorder with a built-in mixer, aimed at film and video sound recordists. It combines low-noise preamps, TCXO-based time code and dual SD card recording in a metal chassis.
- 6-input/8-track recorder with onboard mixer
- Up to 24-bit/192 kHz WAV recording
- Preamps: up to 75 dB gain, -127 dBu EIN
- TCXO time code, 0.2 ppm, BNC in/out
- Dual SD/SDHC/SDXC slots, up to 512 GB each
- 6-in/4-out USB audio interface at 96 kHz
Fotky
6Inzeráty
Tento model zatím nikdo neinzeruje
Až někdo bude prodávat F4, inzeráty a historie prodejů se objeví tady.
Prodat stejnýPopis
The F4 records up to six discrete input tracks plus a stereo mix at up to 24-bit/192 kHz in BWF-compatible WAV (MP3 also available). Four locking XLR/TRS combo inputs each have a dedicated preamp, gain knob, phantom power, six-segment LED meter and record-ready and PFL switches. Inputs 5/6 come from a 3.5 mm stereo input or a Zoom capsule input, and can serve as a camera return for monitoring only.
An onboard mixer routes any input to any output, pre- or post-fader, with level, pan and delay. Each channel has a high-pass filter, phase inversion and Mid-Side decoding. Look-ahead hybrid limiters and Zoom AutoMix are included. A TCXO generates time code at 0.2 ppm accuracy, with drop-frame and non-drop formats, jam sync and BNC in/out. Dual-channel mode makes safety tracks for inputs 1 and 2, and files are saved periodically during recording as protection against power loss or card removal.
It records to two SD/SDHC/SDXC cards at once, and also records to a computer over USB while it writes to a card. USB also serves as a 6-in/4-out audio interface. Power comes from 8 AA batteries, a 4-pin HIROSE external DC source, or the included AD-19 adapter. Bluetooth is not supported.
Video
Specifikace
- Značka
- Zoom
- Model
- F4
- Kategorie
- Studio › Rekordéry
Recording
- Recording media
- Dual SD slots: SD 16 MB–2 GB, SDHC 4–32 GB, SDXC 64–512 GB
- Recording formats
- BWF-compatible WAV, 16-bit or 24-bit, up to 192 kHz; MP3 128/192/320 kbps, 44.1/48 kHz
- Max tracks (MP3)
- 2
- Recording time, 32 GB card
- 30:51:00 (48 kHz/24-bit stereo WAV); 7:42:00 (192 kHz/24-bit stereo WAV)
Inputs
- Inputs 1-4
- XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
- Mic input gain
- +10 – +75 dB
- Mic input impedance
- 3.0 kΩ or more
- Mic max input level
- +14 dBu (at 0 dBFS, limiter ON)
- Phantom power
- +24/+48V, 10 mA maximum per channel
- Line input gain
- −10 – +55 dB
- Line max input level
- +24 dBu (at 0 dBFS, limiter ON)
- Equivalent input noise
- −127 dBu or less (A-weighted, +75 dB gain, 150Ω)
- Return input
- 3.5 mm stereo mini jack
- Capsule input
- Zoom mic capsule input (use disables Inputs 5/6)
Outputs
- Main out 1/2
- XLR balanced
- Sub out 1/2
- 3.5 mm stereo mini unbalanced
- Headphone output
- 1/4" stereo, 100 mW + 100 mW (32Ω load)
Audio
- Frequency response
- 10 Hz – 80 kHz +0.5 dB/−1.5 dB (192 kHz)
- A/D dynamic range
- 120 dB typ (−60 dBFS input, A-weighted)
- D/A dynamic range
- 106 dB typical (−60 dBFS input, A-weighted)
- Crosstalk
- −90 dB or less (adjacent channels, 1 kHz)
Time code
- Connector
- BNC
- Frame rates
- 23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D
- Precision
- ±0.2 ppm
Connectivity
- USB class
- USB 2.0 High Speed
- USB multitrack interface
- 44.1/48/96 kHz, 16/24-bit, 6-in/4-out
- USB stereo mix interface
- 44.1/48 kHz, 16-bit, 2-in/2-out
Power
- Batteries
- 8 AA
- AC adapter
- Zoom AD-19 DC12 V 2A via DC-HIROSE cable adapter
- External DC power
- HIROSE HR10A-7R-4S 4-pin, 9–16 V
- Battery life, 2 ch, 48 kHz/16-bit
- Alkaline 9.5 h+; NiMH 11.5 h+; Lithium 17.5 h+
Physical
- Display
- 1.9" monochrome LCD with white backlight
- Dimensions
- 177.8 mm (W) × 141.1 mm (D) × 54.3 mm (H)
- Weight
- 2.27 pounds (1030 g), main unit only
In the box
- Included
- Camera mount adapter, Zoom AD-19 12V AC adapter, DHC-1 DC-HIROSE cable, Cubase LE and WaveLab LE download codes, operation manual
